Woodward 8440-2165 Generator Synchronizer

Description

Product Introduction & Engineering Value

The Woodward 8440-2165 is an SPM-D2-11/LSXR digital synchronizer designed to coordinate an engine-driven generator with an energized bus. It combines synchronization, load and power-factor control, load sharing, breaker control, and generator protection in a single controller. Woodward specifies the SPM-D2-11 for generators using Woodward or compatible speed controls and automatic voltage regulators.

The LSXR configuration is important when identifying a replacement. This is not simply a voltage-monitoring relay: the controller provides speed/load and voltage/power-factor control functions, active-power setpoint capability, load/VAR sharing, and configurable bias outputs. The exact 100 VAC / 5 A measurement configuration also needs to match the existing generator panel.

Technical Specifications

These functional details are taken from Woodward’s SPM-D2-11 product specification. The controller provides two-phase generator/system voltage measurement, one-phase generator/system current measurement, synchronization, isolated operation, utility parallel operation, load/VAR sharing, and generator protection functions.

Configurable Bias Outputs

The SPM-D2-11/LSXR provides configurable analog biasing for speed and voltage. Woodward lists selectable levels including:

• ±1 V
• ±3 V
• 0–5 V
• 0.5–4.5 V
• ±10 V
• ±5 V
• 0–20 mA
• ±20 mA

The speed-bias output can also be configured as a 500 Hz PWM output with adjustable voltage level.

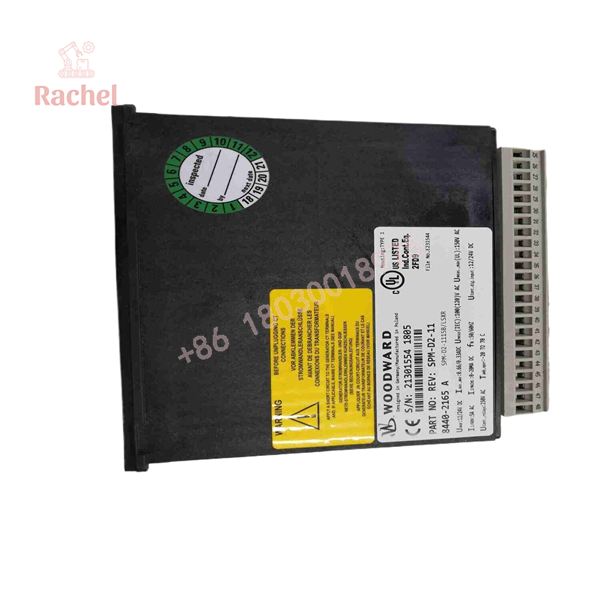

8440-2165

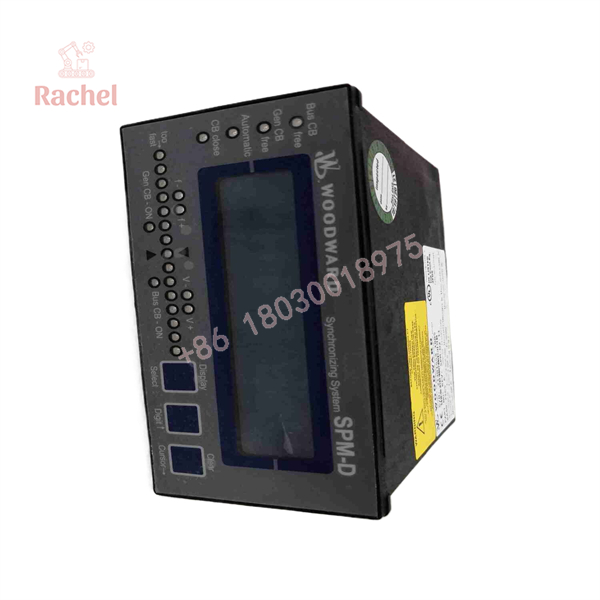

8440-2165

Field Application & “Trench” Experience

The 8440-2165 fits generator panels where the controller must do more than issue a breaker-close signal. During synchronization, it evaluates generator and bus conditions and provides bias commands to the prime-mover speed control and AVR. After synchronization, the same controller can participate in load sharing, power-factor control, or active/reactive power management.

One practical issue appears during replacement work: the original panel may use a 100 V PT secondary and 5 A CT secondary, while a replacement SPM-D2 unit may have a different measuring-input configuration. Woodward separates 8440-2165 (100 VAC / 5 A) from 8440-2169 (400 VAC / 5 A) for this reason.

Typical application scenarios

• Diesel generator synchronization panels
• Industrial generator paralleling systems
• Prime-power generator plants
• Standby generators operating in parallel
• Generator load-sharing systems
• Utility-parallel generator installations
• Generator systems requiring reverse-power and reduced-power protection

Transparency SOP: QA & Testing

New / New Surplus Inspection

For a New Surplus 8440-2165, verify:

• Woodward nameplate
• Part number 8440-2165
• SPM-D2-11 identification
• LSXR configuration
• 100 VAC measuring-input specification
• 5 A current-input configuration
• Serial number and hardware revision
• Terminal condition
• Housing and mounting condition
• Display and keypad condition, where applicable
• Original packaging and traceability information

Functional Testing

A meaningful test procedure should cover:

1. DC power-up and initialization.
2. Generator voltage measurement.
3. Bus/system voltage measurement.
4. Generator current measurement.
5. Frequency measurement.
6. Phase-angle measurement.
7. Synchronization operation.
8. Breaker command output.
9. Speed-bias output.
10. Voltage-bias output.
11. Load/VAR sharing functions.
12. Digital input response.
13. Digital output operation.
14. Reverse-power protection.
15. Over/under-voltage protection.
16. Over/under-frequency protection.
17. Configuration retention after power cycling.
18. USB/ToolKit communication.

For a refurbished unit, the test report should identify the actual functions tested. A simple power-on check does not establish that the synchronizer is suitable for generator service.

Veteran’s Tech Trap Guide

Trap 1 — Confusing 8440-2165 with 8440-2169

Both part numbers belong to the SPM-D2-11/LSXR family and use 5 A current measurement, but 8440-2165 is the 100 VAC version, while 8440-2169 is the 400 VAC version.

Pro tip: Check the PT secondary voltage on the existing panel before ordering.

Trap 2 — Treating the SPM-D2-11 as only a synchronizer

The LSXR configuration also provides load/VAR sharing, active-power setpoint control, voltage/power-factor control, and generator protection.

Pro tip: Record the existing speed-bias, voltage-bias, and load-sharing wiring before removing the controller.

Trap 3 — Ignoring the CT circuit

The 8440-2165 is specified for …/5 A current measurement. CT ratio, secondary rating, polarity, and terminal assignment must be verified before energization.

Pro tip: Never assume that a controller with the same SPM-D2-11 model designation accepts the same CT circuit.

Trap 4 — Confusing the part with easYgen controllers

Some third-party listings incorrectly describe 8440-2165 as an easYgen-3500 controller. The manufacturer documentation identifies it as /LSXR, and Woodward’s catalog separately lists it under the SPM-D2-11 synchronizer family.

Pro tip: For purchasing and technical documentation, classify 8440-2165 as an SPM-D2-11/LSXR synchronizer/load-share controller, not as an easYgen controller.

Dynamic FAQ

Q1: What is Woodward 8440-2165?
Woodward 8440-2165 is an SPM-D2-11/LSXR synchronizer and load-share controller with 100 VAC measuring inputs and …/5 A current inputs.

Q2: What does the SPM-D2-11/LSXR control?
It provides generator synchronization, breaker control, load sharing, power-factor control, active-power setpoint functions, and generator protection.

Q3: What is the difference between 8440-2165 and 8440-2169?
The principal measurement-input difference is voltage: 8440-2165 uses 100 VAC measuring inputs, while 8440-2169 uses 400 VAC measuring inputs. Both are listed with 5 A current inputs.

Q4: Can 8440-2165 be used with a non-Woodward governor?
Woodward specifies the SPM-D2-11 for generators equipped with Woodward or other compatible speed controls and automatic voltage regulators. Compatibility must be checked against the actual bias-input requirements of the governor and AVR.

Q5: What protection functions are built into 8440-2165?
The documented protection functions include generator over/under-voltage, over/under-frequency, overload, reverse power, and reduced-power protection.

Q6: What documentation applies to 8440-2165?
Woodward’s catalog identifies Product Specification 37623 and Manual 37618 for the SPM-D2-11 family.

Q7: How should a New Surplus 8440-2165 be authenticated?
Verify the Woodward nameplate, 8440-2165 part number, SPM-D2-11/LSXR designation, 100 VAC / 5 A measurement configuration, serial information, and physical condition. Functional testing should follow before installation in a critical generator panel.

Q8: Is 8440-2165 interchangeable with an easYgen-3500 controller?
No direct interchangeability should be assumed. They are different Woodward product families with different hardware architecture and application functions. The existing panel’s synchronization, load-sharing, I/O, and protection requirements should determine the replacement.
