Woodward 9905-001 SPM-A Synchronizer

Description

Product Introduction & Engineering Value

The Woodward 9905-001 SPM-A Synchronizer is designed to bring an offline generator into electrical synchronization with a running generator or bus. It monitors generator and bus voltage waveforms, adjusts the generator speed reference through the applicable governor/load-sharing control, and provides the breaker-close command when the synchronization conditions are met.

The key procurement distinction is the “no voltage matching” configuration. The 9905-001 is intended for installations where voltage matching is not required from the synchronizer itself. Selecting a different SPM-A variant can therefore change the control architecture.

Technical Specifications

These values are taken from Woodward’s SPM-A manual rather than secondary-market product listings. The manual also specifies different output configurations for 2301, 2301A, EPG, EGA, and EGM control systems.

Field Application & the “Trench” Experience

A standby generator at a process plant has been maintained successfully for years, but the original synchronizer begins producing inconsistent breaker-close timing. The maintenance team has a replacement 9905-001 available. Before swapping it, the engineer checks the existing SPM-A variant and confirms that the installation does not use automatic voltage matching.

That check prevents a common mistake: installing a superficially similar synchronizer with different voltage-matching functionality and then troubleshooting what appears to be a governor or excitation-system problem.

The replacement is wired according to the existing control architecture, the RUN/CHECK functions are verified, and the breaker-close circuit is tested under controlled conditions before the generator is returned to automatic service.

Specific application scenarios

• Standby diesel generator paralleling — synchronizing a generator to an energized plant bus.
• Multi-generator power plants — matching an incoming generator to another operating generator before paralleling.
• Industrial cogeneration systems — synchronizing generation equipment with an internal distribution bus.
• Marine auxiliary generation — supporting generator-to-bus synchronization where the excitation system handles voltage regulation separately.

Woodward documentation also illustrates the 9905-001 in generator-to-plant-bus and plant-bus-to-utility synchronization arrangements.

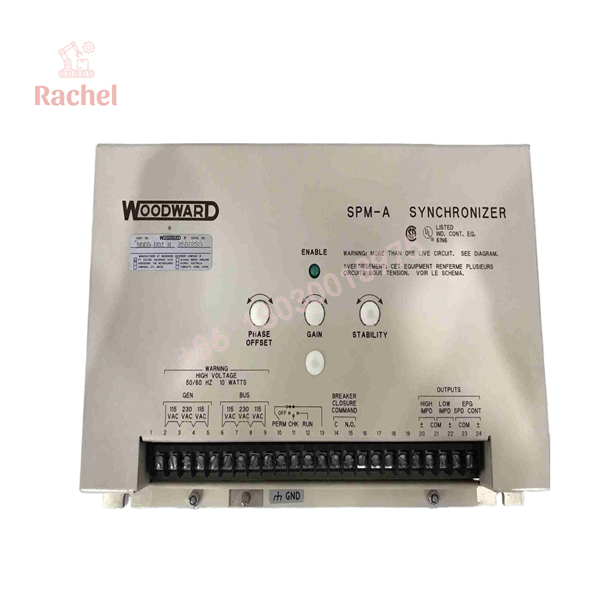

9905-001

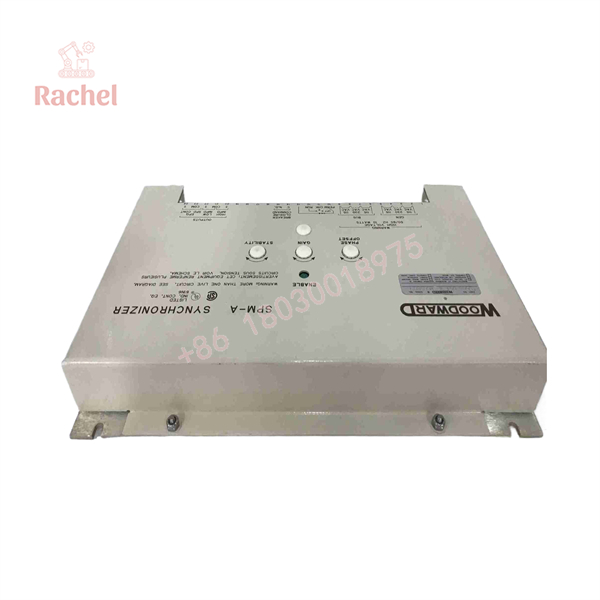

9905-001

Transparency SOP: QA & Testing

For New Surplus 9905-001 inventory, a practical inspection sequence is:

1. Identification check
Confirm the Woodward part number, revision, serial number, and nameplate information.

2. Physical inspection
Inspect terminals, enclosure, adjustment controls, labels, mounting hardware, and evidence of previous installation.

3. Electrical inspection
Verify the applicable input configuration against the required 115/230 VAC system before applying power.

4. Functional test
Where the appropriate Woodward test equipment and generator-simulation setup are available, verify frequency/phase detection, operating modes, output behavior, and breaker-close relay operation.

5. Documentation
Record test conditions, revision information, condition classification, and warranty terms.

Woodward’s installation supplement lists 9905-001 among the SPM-A configurations covered by UL and/or CSA listings for ordinary locations, subject to the identification and installation conditions specified by Woodward.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — 9905-001 is not the voltage-matching version.

Woodward specifies no voltage matching for 9905-001. The closely related 9905-002 provides 1% voltage matching, while other SPM-A part numbers have different voltage-matching configurations. Do not substitute them simply because the enclosure and basic function appear similar.

⚠️ Trap #2 — Check the governor interface.

The SPM-A output configuration must correspond to the connected control system. Woodward documents high- and low-impedance outputs for different 2301-family and EPG/EG-series control arrangements.

PRO TIP: Before removing the old synchronizer, photograph every terminal and record the existing wiring. The breaker-close circuit and speed-bias connection are not areas for guesswork.

⚠️ Trap #3 — Do not assume every online specification is for 9905-001.

Several secondary-market listings incorrectly describe this part as a 24 VDC digital governor or give specifications belonging to another Woodward controller. Woodward’s official SPM-A documentation specifies 115/230 VAC RMS inputs, 50/60 Hz, and 5 W maximum consumption for 9905-001.

Dynamic FAQ

What is Woodward 9905-001?

The 9905-001 is a Woodward SPM-A Synchronizer used to synchronize a generator with another generator or an energized bus before breaker closure.

Does the 9905-001 perform automatic voltage matching?

No. Woodward identifies 9905-001 as the 50/60 Hz, ±10° phase-angle version with no voltage matching.

What input voltage does the 9905-001 use?

The documented bus and generator voltage inputs are 115 or 230 VAC RMS, 50/60 Hz, with ±10% voltage tolerance.

What is the phase-match window?

The standard configuration for 9905-001 is ±10°. The SPM-A platform also supports other phase-window selections depending on the specific part number and internal configuration.

Is 9905-001 still available as New Surplus?

Yes, secondary-market listings currently show New Surplus examples of 9905-001, although condition and authenticity should be verified independently with the supplier. One current listing identifies its condition as New-Surplus Original Box.

What should a supplier warranty cover?

For a New Surplus 9905-001, the quotation should state the exact part number and revision, physical condition, functional test coverage, warranty duration, and RMA/return terms. For an obsolete or superseded legacy item, these details are particularly important. A current cross-reference directory identifies 9905-001 as a legacy/superseded item while noting continued support.
