Woodward 9905-971 LINKnet Discrete Input Module

Description

Product Introduction

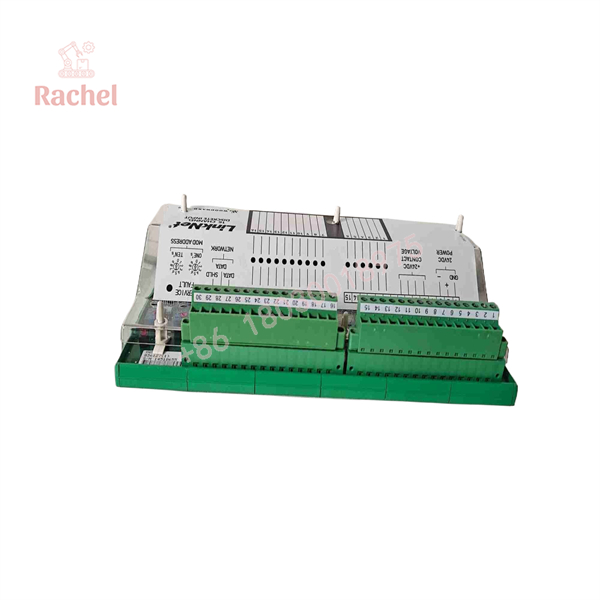

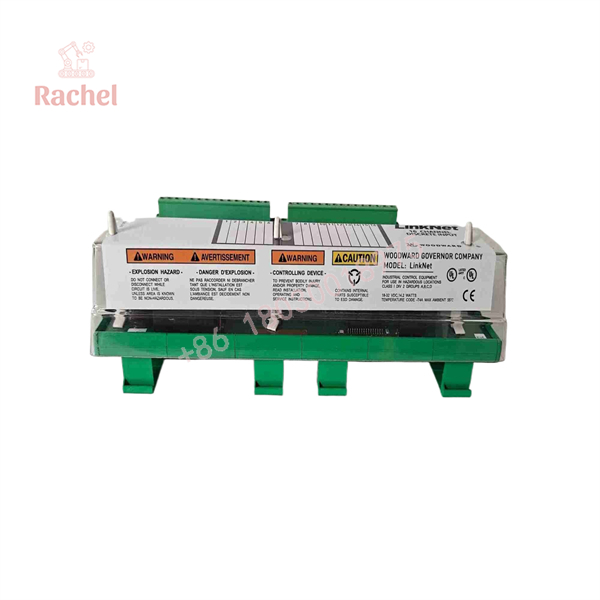

The Woodward 9905-971 is a 16-channel discrete input module engineered for distributed signal acquisition within Woodward LINKnet control architectures. Built primarily for prime movers, gas turbines, and large industrial engine control systems, this module handles field switch contact states, pressure switch triggers, and discrete trip signals. It converts raw digital field inputs into deterministic control data for transmission back to main processors like the MicroNet or Atlas control systems.

Unlike bulk central rack I/O, the 9905-971 sits directly on local LINKnet nodes near the machinery, sharply cutting long field wiring runs. Its robust optocoupler isolation protects sensitive central control processors from ground loops and industrial high-voltage spikes. By processing inputs rapidly with high noise rejection, the Woodward 9905-971 ensures high-speed trip signals reach the core governor system without delay.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:00 AM at a gas compression plant. A auxiliary LINKnet node drops offline during a turbine start sequence because a 20-year-old input card failed, throwing intermittent contact faults. The whole train trips. Down time costs $45,000 an hour, and your central control system refuses to clear the trip state until that node reads real contact closure. Having a direct replacement 9905-971 on hand turns a full plant shutdown into a simple 10-minute swap.

• Gas & Steam Turbine Control: Monitoring lube oil level switches, fuel valve limit switches, and emergency stop interlocks.
• Reciprocating Engine Speed Governing: Capturing auxiliary fault contacts and starter motor engagement verification.
• Marine Propulsion Plants: Handling remote engine room alarms and thruster status feedback in high-vibration marine environments.
• Power Generation Plant Balance-of-Plant (BOP): Local monitoring of breaker statuses and high-level tank alarms over LINKnet clusters.

9905-971

9905-971

Transparency SOP: Quality Assurance & Testing

We treat surplus and replacement industrial hardware with extreme care. Every Woodward 9905-971 goes through our strict verification bench:

1. Inbound Physical Inspection: We inspect terminal blocks, check housing structural integrity, and verify original Woodward OEM serial labels.
2. Backplane & Power-On Test: The module is racked into a test LINKnet network base. We verify power supply draw and confirm no internal bus faults occur during boot.
3. 16-Channel Field Input Injection: Every input point is fired using a 24 VDC power supply. We verify both the physical channel LED response and the register status change over the LINKnet communication stream.
4. Thermal & Noise Isolation Checks: We run channel isolation checks to ensure transient spikes haven’t degraded internal optical isolators.
5. Anti-Static Packaging: The cleared module is cleaned, wrapped in ESD shielding bags, and packaged in customized foam-padded boxes prior to shipment.

The Veteran’s Tech Trap Guide

• ⚠️ Check Your Node Address Switches: Before ripping out the dead 9905-971 card, look at the address settings on the mounting base or module. If you pop the new card in without matching the exact node address, the MicroNet/Atlas CPU will throw a missing node fault instantly.
• ❗ Field Supply Sinking/Sourcing Confusion: Make sure your field dry contacts match the 24 VDC loop wiring configuration used by this specific card layout. Mixing external power supplies with unisolated field wiring can blow the input resistor packs.
• ⚠️ Shield Termination Errors: LINKnet uses high-speed serial comms. Do NOT ground the cable shield on both ends of the node trunk loop. Ground it at the main processor panel only to prevent ground loops from corrupting input data.
• ❗ Hot-Swapping Risks: Do not pull or insert this card while the 24 VDC field supply is active on the terminal block. Arcing across the backplane edge connectors can damage neighboring LINKnet modules on the same channel rail.

Frequently Asked Questions

Q: Is the Woodward 9905-971 hot-swappable during live plant operation?

A: No. You should isolate the 24 VDC field input power and node logic power before extracting the card. Hot-pulling LINKnet cards can interrupt serial communications to adjacent node modules on the same loop, causing wider system trips.

Q: Can I replace a revision 9905-971 with a different revision letter?

A: In almost all cases, yes. Woodward keeps backwards hardware compatibility across revision letters within the 9905-971 part number line. However, verify that your MicroNet system software version recognizes the module node parameters.

Q: How do I test if an individual input channel is burnt out?

A: Measure voltage directly across the field terminals for that channel while the contact is closed. If you read 24 VDC at the terminals but the channel LED stays off and the system registers no input, the internal optocoupler for that specific channel has failed.

Q: What warranty comes with these modules?

A: All our surplus and refurbished Woodward hardware carries a full 12-month functional warranty. If it fails on your bench or during startup, we exchange it or refund it immediately.

Q: Why buy new surplus or refurbished instead of ordering direct from Woodward?

A: The 9905-971 series has been discontinued by the OEM for years. Buying direct often means facing multi-month factory lead times or being forced into an expensive system upgrade. New surplus or field-tested refurbished units give you an immediate, plug-and-play fix without rewriting system code.
