Description
Product Introduction & Engineering Value
When high-speed steam or gas turbines exceed safe operating thresholds, mechanical trip bolts can stick due to varnish or thermal bind. The Woodward 9907-147 ProTech 203 system eliminates mechanical failure modes by replacing old flyweights with solid-state digital frequency monitoring. Housed in a NEMA-rated enclosure, this 24 VDC de-energize-to-trip unit utilizes three completely autonomous microprocessor modules that constantly tally rotational speed across dedicated magnetic pickups.
What makes this specific model an industry benchmark in chemical processing and power plants is its vote-sanctioned accuracy. By executing a 2-out-of-3 (2oo3) hardware trip relay sequence, the 9907-147 prevents false trips caused by single-sensor cable faults while guaranteeing millisecond-level emergency stop activation when real overspeed conditions occur.
Technical Specifications
| Feature / Parameter | Standard Specification |
| Input Power Voltage | 24 VDC nominal (18–32 VDC operating range) |
| System Architecture | Triple Modular Redundant (TMR) with 2oo3 De-Energize-To-Trip logic |
| Speed Input Signals | 3 Independent Magnetic Pickup (MPU) Channels |
| Sensing Frequency Range | 100 Hz to 32,000 Hz |
| Trip Setpoint Range | 250 Hz to 25,000 Hz (Field Programmable per channel) |
| System Accuracy | ±(0.05% × Trip Point in Hz + 2 Hz) |
| Operator Display | 3 Backlit LCDs (2-line × 16 character) with dedicated keypads |
| Security Mechanism | Integrated Master Key Switch (MONITOR / PROGRAM modes) |
| Relay Outputs | Individual channel alarm relays & voted trip output relays |
| Operating Temperature | -25°C to +60°C (-13°F to +140°F) |
Field Application & The “Trench” Experience
The Trench Story
A Gulf Coast boiler plant running an 18,000 RPM boiler feed pump turbine had suffered three un-commanded trips in a single month due to electrical noise bleeding into an older single-channel trip unit. Each trip knocked out feed-water pressure, forcing automatic safety shutdowns of the main power boilers.
The site engineer swapped the single-channel panel for a Woodward 9907-147 ProTech 203. Using the built-in signal generators on channels A, B, and C, the instrument crew tested overspeed trip setpoints and relay drop-out response without spinning the pump uncoupled. When a subsequent motor variable-frequency drive nearby emitted heavy EMI noise that faulted channel A’s sensor, the 9907-147’s 2oo3 voting engine ignored the single-channel anomaly, holding the boiler feed pump online and saving the plant from a $200,000 un-scheduled shutdown.
Specific Field Applications
- Ethylene Plant Boiler Feed Pumps: High-RPM drive turbines operating well above 10,000 RPM where mechanical trip pins fail due to centrifugal fatigue.
- Synthesis Gas Compressor Trains: Multi-stage mechanical drive turbines requiring online trip testing during multi-year continuous production runs.
- Paper Mill Back-Pressure Turbines: Critical industrial co-generation units operating in high-vibration power house environments.
- 9907-147

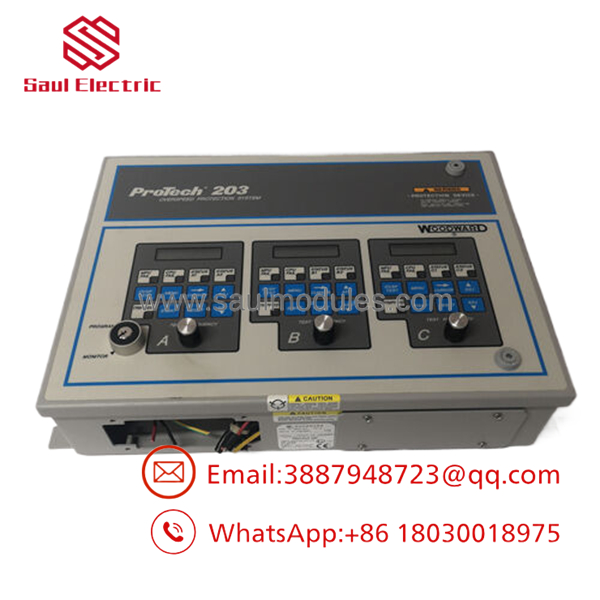

- 9907-147
Transparency SOP: QA & Testing
- Physical Inspection ──► Check panel seals, key lock cylinder, LCD displays, and rear terminal blocks.
- Power Supply Check ──► Apply 24 VDC power rail; verify current draw and isolated internal logic voltages.
- Pulse Injection Test ──► Inject 100 Hz–32 kHz signals to verify tracking accuracy on Channels A, B, and C.
- 2oo3 Voting Routine ──► Force single-channel trip (No Trip), then dual-channel trip (Relays De-energize).
- Thermal Burn-In ──► Soak in test bay at 55°C for 24 hours while recording frequency threshold stability.
The Veteran’s Tech Trap Guide
- ⚠️ De-Energize-To-Trip Wiring Trap: Remember that model 9907-147 is a De-Energize-To-Trip configuration. Its internal relays are held continuously energized during normal running conditions. Disconnecting 24 VDC power, losing primary power, or cutting a relay wire will immediately drop the trip line and dump the turbine stop valves.
- PRO TIP: Identical Programming Required: Although channels A, B, and C are set up independently via their own touchpads, you must program their speed gear tooth counts and trip frequency setpoints identically! Mismatched gear parameters between channels will lead to false voting trips during rapid machine acceleration.
- ⚠️ Master Key Position: Always return the front key switch to MONITOR mode and remove the key after making programming changes. Leaving the key switch in PROGRAM mode disables the automated self-test frequency routines and leaves the panel vulnerable to accidental parameter changes by unauthorized site operators.
Dynamic FAQ
Q: How does the ProTech 203 built-in test function work while the turbine is running?
A: Each individual speed channel (A, B, or C) features an integral frequency generator. In test mode, you can inject a simulated overspeed signal into Channel A to verify its relay drop-out, while Channels B and C continue monitoring actual machine speed, keeping the 2oo3 system fully active and online without tripping the unit.
Q: What power supply voltage does the 9907-147 require?
A: The 9907-147 operates on a 24 VDC input power supply. Ensure your cabinet provides a clean, battery-backed 24 VDC source with adequate surge protection.
Q: What happens if one Magnetic Pickup (MPU) sensor cable breaks?
A: If one MPU cable snaps, that specific channel registers a zero-speed or sensor fault alarm. Because the system uses 2-out-of-3 logic, the turbine continues to run safely on the remaining two channels until maintenance can replace the sensor.
Q: Can I lock out the programming keys to prevent tampering?
A: Yes. The 9907-147 features a physical, key-operated selector switch on the front door. Turning the key to MONITOR mode physically locks out the keypad and potentiometer adjustments across all three channels.
Q: What warranty covers New Surplus or Reconditioned 9907-147 panels?
A: All Woodward 9907-147 overspeed protection panels ship with a full 1-year replacement warranty, fully tested on 3-channel pulse generator test stands prior to dispatch.
