Yokogawa ALP121-S00 PROFIBUS-DP Communication Module

Description

Product Introduction

The Yokogawa ALP121-S00 is a PROFIBUS-DP communication module for CENTUM VP and related Yokogawa FIO systems. It operates as the PROFIBUS-DP master, exchanging cyclic and acyclic data with DP slave devices such as remote I/O, PLCs, drives, and field instruments.

It uses an isolated EIA RS-485 physical interface, a 9-pin D-sub female connector, and speeds from 9600 bps to 12 Mbps. The module mounts directly in compatible AFV30/AFV40 field control units or in ANB10/ANB11 ESB bus node units, allowing PROFIBUS integration without adding a separate gateway.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A CENTUM VP FCS loses communication with a PROFIBUS remote-I/O island after a plant shutdown. The DP slaves are powered, but their diagnostic LEDs show no master polling. Before replacing every remote I/O module, check the ALP121-S00: a bad RS-485 termination, damaged DP cable shield, or failed master module can isolate an entire PROFIBUS segment.

• Oil and gas – CENTUM VP integration with PROFIBUS remote I/O, motor starters, and process controllers – Required because the ALP121-S00 is the FIO-side PROFIBUS-DP master.
• Chemical and petrochemical – Integration with PROFIBUS-PA instruments through a DP/PA coupler – Required for access to PA device data from the Yokogawa FCS.
• Power generation – Balance-of-plant and auxiliary-system PROFIBUS networks – Required for 12 Mbps DP communication and isolated RS-485 field connection.
• Water and wastewater – Remote I/O, drives, and third-party PLC integration – Required for deterministic PROFIBUS-DP master/slave communication over long cable runs.
• Legacy DCS modernization – Replacement of a failed ALP121-S00 in an existing AFV30/AFV40 or ANB10/ANB11 installation – Required because mounting location, DP-V1 capability, and software revision are version-specific.

Field case study: A chemical plant’s PROFIBUS segment began dropping devices after every rain event. The FCS showed intermittent slave-loss alarms, but the ALP121-S00 appeared healthy. Inspection found water ingress at an outdoor DP junction box and a degraded cable shield. After repairing the segment and verifying termination, the original module continued operating normally. The lesson: diagnose the RS-485 physical layer before replacing the master module.

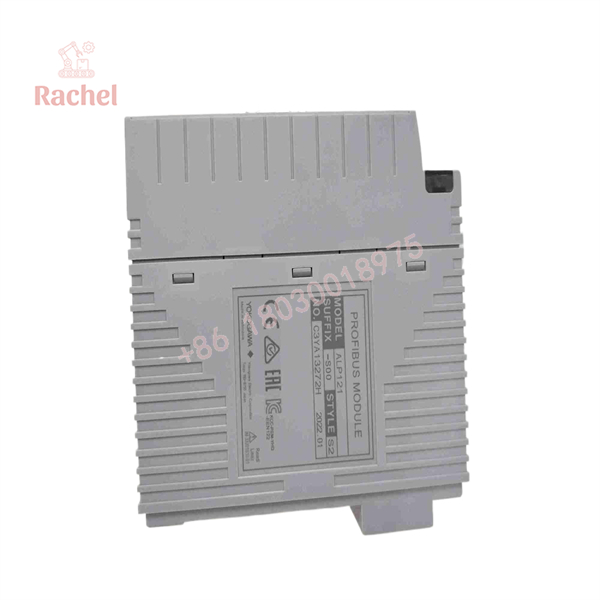

ALP121-S00

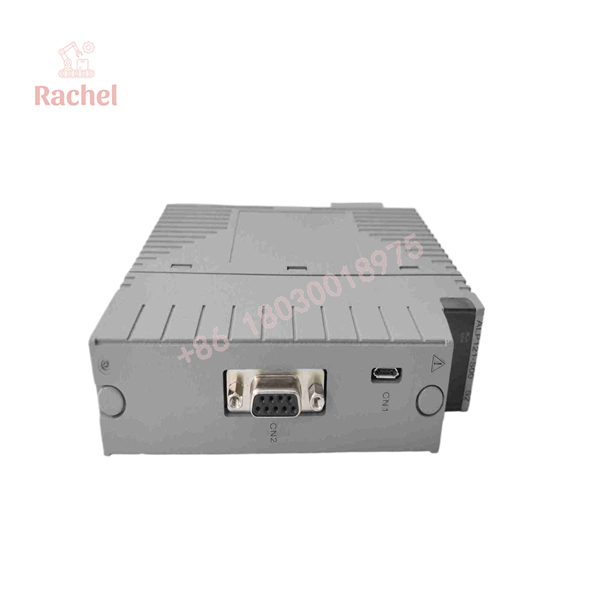

ALP121-S00

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them in a compatible Yokogawa FIO/ESB environment or equivalent PROFIBUS master rig where available.

• Inbound inspection: Verify model marking, suffix code S00, 9-pin D-sub condition, backplane connector integrity, PCB damage, and evidence of prior repair.
• Anti-counterfeit check: Compare label format, housing construction, connector hardware, and PCB layout against known Yokogawa ALP121 examples.
• Live rig testing: Install in a compatible AFV30/AFV40 or ANB10/ANB11 node; verify module recognition, PROFIBUS initialization, and slave polling.
• Protocol testing: Exercise PROFIBUS-DP master/slave communication with configured DP slaves; verify cyclic data exchange, diagnostics, and parameterization where supported.
• DP-V1 verification: For style S2 or later, verify DP-V1 functionality and certification-related behavior where the test system supports it.
• Electrical checks: Confirm RS-485 isolation, bus termination behavior, and stable communication at selected baud rates from 9600 bps to 12 Mbps.
• PA-path verification: Where applicable, test communication through a DP/PA coupler to confirm access to PROFIBUS-PA device data.
• Final QC and packaging: Record test results, protect the D-sub and backplane connectors, and ship in anti-static packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Do not confuse ALP121-S00 with ALP111-S00. The ALP121 is the PROFIBUS-DP master module; the ALP111 is a different PROFIBUS-DP communication module. The complete model number matters.
• ❗ Check the style code before assuming DP-V1. DP-V1 certification applies to ALP121 style S2 or later. An S00 may not provide the same acyclic DP-V1 capability.
• ⚠️ Verify PROFIBUS termination and shielding. A missing terminator, excessive stub length, or damaged shield can cause intermittent slave loss that looks exactly like a failed ALP121.
• ❗ Confirm the CENTUM VP revision. The listed compatibility requires CENTUM VP R5.02.00 or later for the relevant FCS control-function revision. Do not install a newer module into an unverified older software environment without Yokogawa guidance.
• ⚠️ Do not treat the D-sub as a generic RS-485 port. It is a PROFIBUS-DP field interface with defined pinout, isolation, and bus requirements. Verify the OEM pinout and cable specification before wiring.

Frequently Asked Questions

Q: Is the ALP121-S00 hot-swappable?
A: Treat it as a powered-down replacement unless your specific Yokogawa FIO system documentation explicitly permits online replacement. Removing it can interrupt PROFIBUS-DP communication for all connected slaves.

Q: Does it support PROFIBUS-PA devices directly?
A: No. PROFIBUS-PA devices are accessed through a PROFIBUS DP/PA coupler. The ALP121-S00 communicates on the DP side and can reference PA device data through that coupler.

Q: Can it operate as a PROFIBUS slave?
A: No. The documented function is PROFIBUS-DP master device, communicating with DP slave devices such as remote I/O and PLCs.

Q: What is the maximum PROFIBUS cable length?
A: The module supports up to 1.2 km at 9600 bps. At higher baud rates, the allowable segment length is shorter according to PROFIBUS physical-layer rules.

Q: Does it support DP-V1?
A: Only ALP121 style S2 or later is identified as PROFIBUS DP-V1 certified. The S00 suffix alone does not establish DP-V1 capability; verify the style code on the installed module.

Q: Can I mount it in an ANB10 or ANB11 node?
A: Yes. It can be mounted in ANB10 and ANB11 ESB bus node units connected to AFV30 or AFV40 field control units.

Q: Why is surplus stock cheaper than direct OEM supply?
A: Surplus suppliers source retired DCS inventory, excess project stock, and decommissioned systems. The lower price reflects limited availability and variable cosmetic condition, not necessarily poor electrical performance—provided the module passes PROFIBUS master, slave polling, isolation, and baud-rate testing.

Q: What warranty should I expect?
A: For a tested refurbished or surplus unit, 12 months is a reasonable baseline. Some suppliers advertise 12-month coverage; confirm whether it covers functional failure, replacement, repair labor, and exclusions for incorrect configuration or physical damage.
